After I bought the
Electric Paddle outboard some things went away. Such as the need to carry extra oil, gas and parts like zincs, spark plugs etc... for the Honda BF2 outboard. But, I was faced with another issue on how to charge the Electric Paddle's battery. BIANKA usually stays on a mooring or at anchor so charging from the dock power is not an option. Since part of my three legged approach to energy on board BIANKA includes a Honda 2000 generator charging the 28 volt battery is a easy but, I really don't like to run the generator if I can avoid it. Running it for an hour or two to just charge the Electric Paddle's battery just seems like a waste of energy. So I started thinking about getting an inverter for the boat. According to the Electric Paddle's manual the 120 volt charger can charge the battery using an inverter of only 200 watts. Though when I thought about it there might be a few other 120 volt items I might like to use on board from time to time without needing to fire up the Honda Generator. Having a 10 kilowatt 48 volt electric propulsion battery
bank does come in handy after it is charged up at anchor. One can easily tap into it from time to time and then just let the solar panels and wind generator recharge things without ever having to fire up the generator. So it seemed like it was a good idea to spring for a 48 volt to 120 volt sine wave inverter to not only charge the Electric Paddle battery but, also be able to use it for other needs like running the Wet/Dry Micro Vac for quick clean ups, using 120 power tools and maybe a bread maker or microwave down the road. The inverter I decided on was the
AIMS PWRI150048S 1500 Watt Pure Sine Wave Power Inverter, 48 Volt. It would easily be able to handle charging the Electric Paddle battery pack and also be powerful enough to use for more powerful AC items.
When I first bought the Thoosa 9000 electric propulsion system for the boat I also purchased a 48 volt to 12 volt converter. It is a 300 watt Sevcon converter. I mostly use it for powering the laptop while at anchor to blog and search the Internet. It works well with the 12 volt power supply I bought for the computer. I've also used it to temporarily power the on board
Engel Refrigerator - Freezer when several days of cloudy/rainy weather drained the 12 volt house bank to far. Here is are some photo's comparing the size of the converter and the inverter:

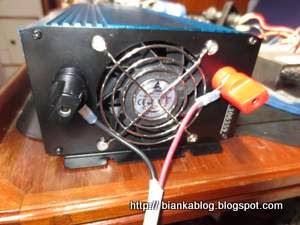

There is a bit of size difference but, the Inverter is five times as powerful and can be used to power more things including the laptop and Engel along with a number of 120 volt devices. Connection of the AIMS Inverter to the 48 volt battery bank is by two terminals on the back of the unit:
The front of the unit has two AC outlets, an on/off switch and two status LED's and a ground lug:
The AIMS Inverter also comes with a handy keychain type rf remote switch so you can mount the unit in a remote location on board but, still turn it on and off when needed without having access to the front panel on/off switch. For now I have mounted the unit in the main cabin where I can see the status lights and have access to the on/off switch and AC outlets. I am also using the 15 amp tap of the 48 volt Morningstar solar controller to provide power for the inverter via 75 amp
Anderson Powerpole connectors:
This means I am limited to only using around 700 watts of the 1500 watt potential on the inverter. But, for now that's all I need. So far the AIMS Inverter has come in very useful primarily for charging the Electric Paddle battery without requiring I run the generator for hours and it will come in even more useful to power other devices in the future.
